4-36mm can be customized
Sende

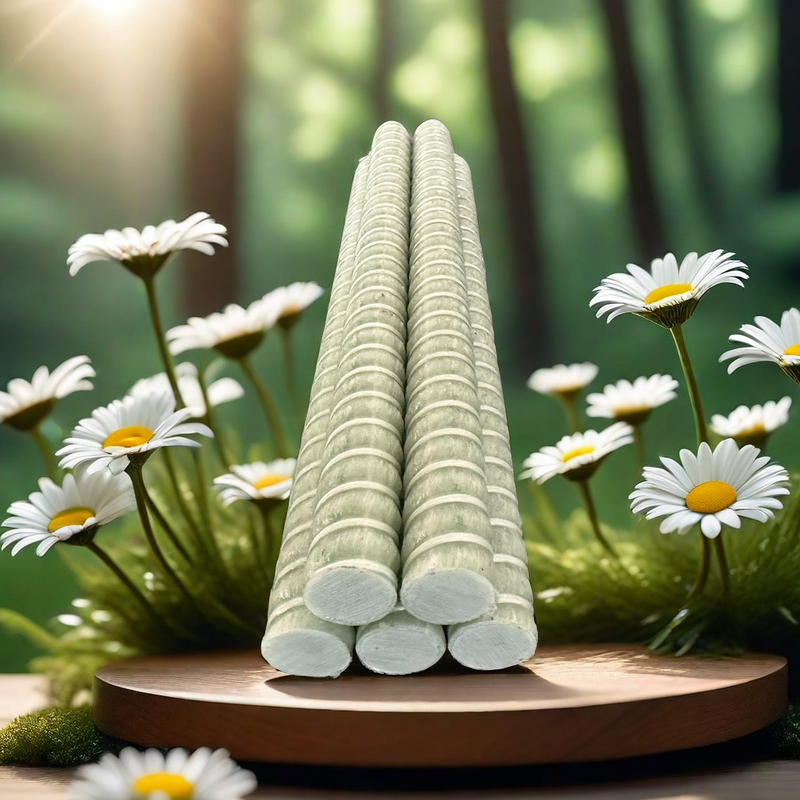

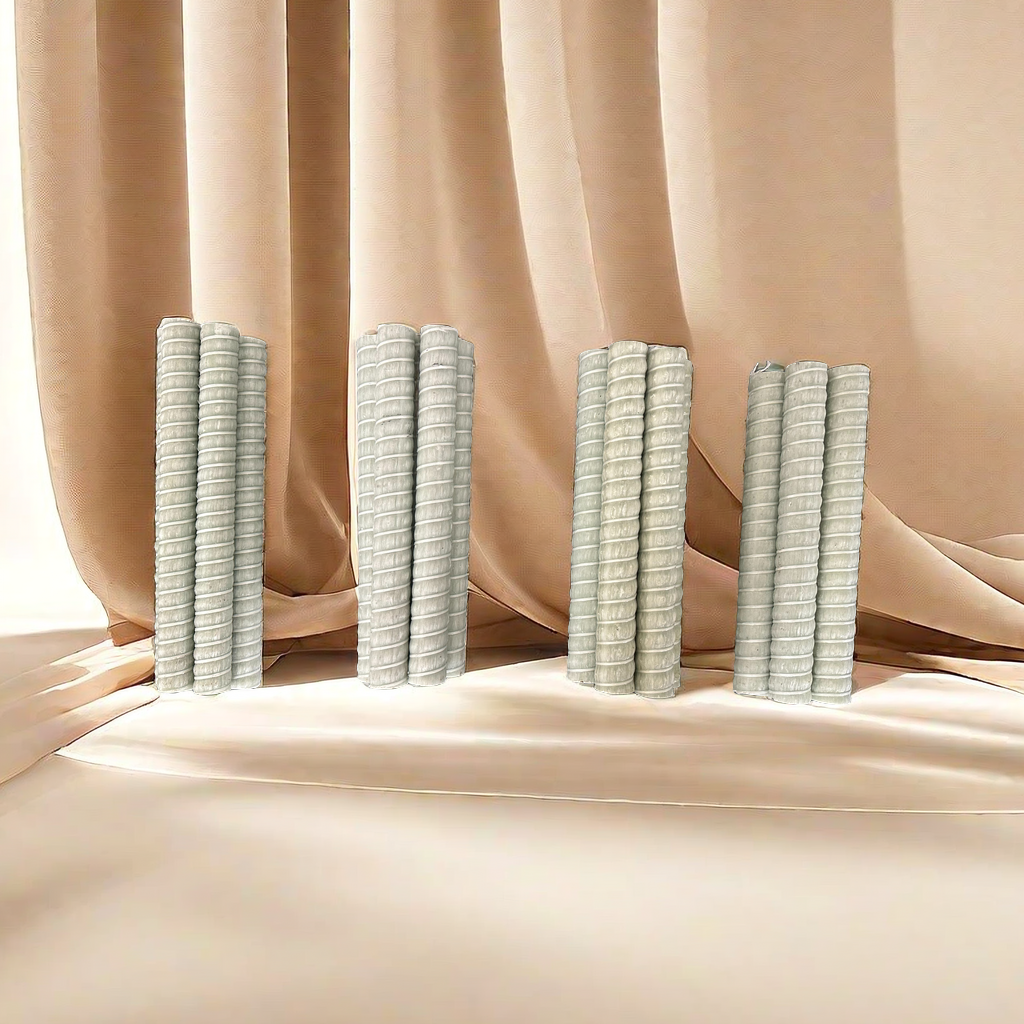

Glass fiber reinforcement is a kind of high-performance structural reinforcement material, which is made of high-quality glass fiber and resin matrix. It has the characteristics of light weight and high strength, not only has the tensile strength close to that of high-strength steel, but also its weight is only a quarter of that of traditional steel bars, which greatly reduces the construction burden and improves the construction efficiency.
Glass fiber reinforcement also has excellent corrosion resistance, which can resist the corrosion of various chemicals, especially suitable for corrosive environments such as sewage treatment plants and chemical plants. Its fatigue resistance is also excellent, and its performance is stable after long-term use, and fatigue fracture is not easy to occur.
In addition, the construction of glass fiber reinforcement is simple and convenient, which can be closely combined with concrete without special connection mode, thus reducing the construction difficulty and cost. At the same time, it also has excellent wave permeability and non-magnetism, which makes it possible to play a unique advantage in some special application scenarios, such as electromagnetic shielding areas and radar facilities.
Glass fiber reinforcement has become an indispensable new reinforcement material in modern civil and architectural engineering because of its excellent performance and wide application fields. Whether it is bridges, tunnels, expressways, airports, docks and other engineering structures, glass fiber reinforcement can provide reliable reinforcement effect to ensure the stability and safety of engineering structures. Choose glass fiber reinforcement, you will enjoy multiple advantages such as high performance, corrosion resistance and easy construction, which will bring more solid and reliable guarantee for your project.
This is the technical parameter of glass fiber reinforcement.
| Type/Specification of Glass Fiber Reinforcement | Tensile Strength (MPa) | Elastic Modulus (GPa) | Density (g/cm³) | Shear Strength (MPa) | Ultimate Tensile Strain (%) |
|---|---|---|---|---|---|
| Standard Type | ≥600 | ≥35 | 1.9-2.2 | ≥110 | ≥1.2 |
| High-Strength Type | ≥1400 | ≥45 | 1.9-2.2 | ≥120 | ≥1.5 |
| Ultra-High-Strength Type | ≥1800 | ≥50 | 1.9-2.2 | ≥130 | ≥1.8 |
This is the reference weight of glass fiber reinforcement per meter.
| Diameter (mm) | Weight per Meter (kg/m) |
|---|---|
| 6 | 0.07 |
| 8 | 0.1 |
| 10 | 0.15 |
| 12 | 0.21 |
| 14 | 0.28 |
| 16 | 0.32 |
| 18 | 0.43 |
| 20 | 0.55 |
| 22 | 0.61 |
| 25 | 0.95 |
| 28 | 1.15 |
| 30 | 1.36 |
| 32 | 1.51 |
| 34 | 1.71 |
| 36 | 1.91 |
Anhui Sende New Material Science and Technology Development Co., Ltd. is located in the heart of China. With the persistent pursuit of innovative technology and unremitting persistence in product quality, we focus on the research, development, production and sales of glass fiber reinforcement. Our products are widely used in buildings, bridges, tunnels, highways and other engineering fields, providing solid and reliable reinforcement materials for modern civil and architectural engineering.
As a leader in the industry, we are well aware of the importance of glass fiber reinforcement in modern engineering structures. Therefore, we introduced advanced production technology and equipment, combined with the local actual situation, and created a series of glass fiber reinforced products with high performance, corrosion resistance and easy construction. Our products not only have excellent tensile strength and elastic modulus, but also have the characteristics of light weight, high strength, fatigue resistance and non-magnetism, which can meet the needs of different projects.
At the same time, we have a professional and efficient R&D team, constantly innovating and providing customers with better products and services. We insist on market-oriented and customer-centered, and constantly improve the quality and performance of products to meet the changing needs of customers. To provide customers with better products and services and contribute to the development of modern civil and architectural engineering. We are very much looking forward to communicating with you.
